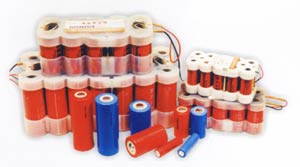

| Sealed Nickel-Cadmium cylindrical rechargeable battery pack |
 |
The sealed nickel-cadmium
cylindrical alkaline rechargeable battery groups produced by our
company have feature as excellent sealing performance,high reliability,high
capacity,stable working voltage and wide range of operation temperature. |
 |
|
| Models | Nominal Capacity(mAh) |
Nominal Voltage(V) | Max.Weight(g) | Max.External Dimensions |
| 10GNYG1 | 1000 | 12 | 500 | 105X45X53.5 |
| 10GHYG1.8A | 1800 | 12 | 580 | 134X56X58 |
| 10GNYG3 | 3000 | 12 | 1500 | 168X69X70 |
| 20GNYG3 | 3000 | 24 | 3200 | 239X97X70 |
| 10GNYG4 | 4000 | 12 | 1800 | 168X69X70 |
| 10GNYG4.5 | 4500 | 12 | 1800 | 168X69X70 |
| 20GNYG4 | 4000 | 24 | 3600 | 239X97X90 |
| 20GNYG4.5 | 4500 | 24 | 3600 | 239X97X70 |
| 10GNYG7 | 7000 | 12 | 3000 | 170.5X99X70.5 |
| 20GNYG7 | 7000 | 24 | 5500 | 240X100X100 |
| 20GNYG9 | 9000 | 24 | 5500 | 240X100X100 |
| 10GNYG10 | 10000 | 12 | 3900 | 220X90X100 |
| 20GNYG10 | 10000 | 24 | 8400 | 313X125X103 |
| 20GNYG12 | 12000 | 24 | 8500 | 303X102X100 |
| 10GNYG4.5D | 4500 | 12 | 2000 | 202X70X73 |
| 10GNYG4.5E | 4500 | 12 | 2000 | 202X70X73 |
| 10GNYG4.5F | 4500 | 12 | 2000 | 202X70X73 |
| 20GNYG4.5A | 4500 | 24 | 4000 | 296X92X101X |
| 20GNYG7 | 7000 | 24 | 5750 | 315X103X110 |
